Microwave Real Presence

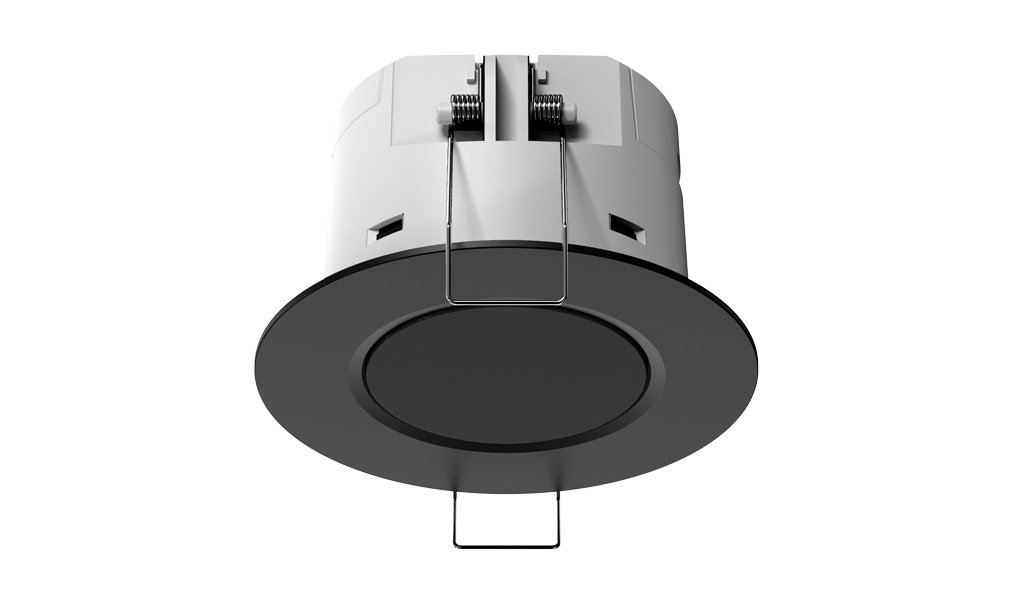

Multifunctional KNX Secure Real Presence Sensor (Black)

EK-SG2-TP-P-B

Matte black 24 GHz microwave radar sensor for dark ceilings; accurately detects sedentary presence, typing and micro-movements. Completely eliminates unintended lighting cutoffs while monitoring ambient temperature and humidity continuously.

Colour & FinishBlack

Made in Italy

KNX Secure

Compact Flush Design

Architectural Integration & Philosophy

Delivers impeccable visual discretion in contemporary dark ceiling designs. Its 24 GHz radar technology continuously captures static presence without blind spots, elevating building energy efficiency and occupant comfort.

Functions & Technical Capabilities

Matte black finish with 24 GHz microwave radar technology

Static presence and micro-motion detection

Up to 4 independent output channels for lighting and HVAC

Built-in lux sensor and constant light control

Integrated temperature and relative humidity sensors

Thermoregulation and logic functions

Master / slave system design

KNX Data Secure encryption

Technical Specifications

Detection Technology: 24 GHz microwave radar technology (Matte Black)
Static Presence Range: 360° circular area, up to 8.5m diameter (at 4m height)
Installation Height: Approx. 2.5 m - 4.0 m
KNX Bus Power Supply: 21-30 Vdc via KNX bus (SELV)
Auxiliary Supply (SELV): 12-30 Vdc (Current: 20 mA @ 30 Vdc)
Illumination Range: 0 - 2000 lux
Body Diameter: Ø 48.5 mm
Outer Diameter: Ø 65 mm
Mounting Hole Diameter: Ø 53 - 55 mm
Recess Depth: 38 mm
Protection Degree: IP20 (EN 60529)
