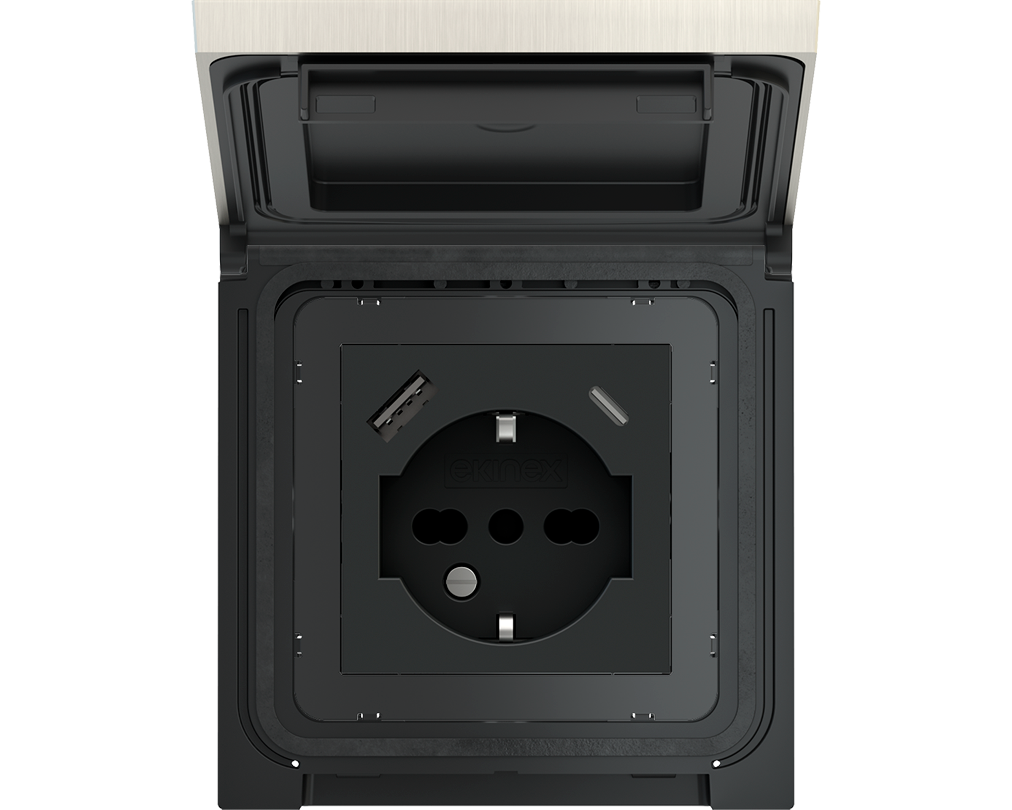

Waterproof Cover IP65
Thanks to its robust construction and high-quality materials, the Ekinex waterproof cover provides uncompromised weather and moisture resistance without sacrificing refined architectural elegance. Once installed, it ensures an IP65 ingress protection degree, making it ideal for outdoor patios, terraces, spas, swimming pools, and residential or commercial wet rooms with demanding aesthetic standards.
Architectural Protection & Design Heritage
Bridging the gap between severe environmental demands and high-end interior architecture, the IP65 waterproof cover reflects Ekinex's proprietary registered design identity (European Design Registration No. 015136229-0002 and 015136229-0001 for the ERA version). The ergonomic hinged cover ensures effortless access to plugs and buttons while sealing completely against dust ingress and water jets from any direction when closed.
Functions & Technical Capabilities
Technical Specifications
- Product Code
- EK-AWC-IP-B
- Protection Degree
- IP65 (conforming to IEC 60529)
- Design Registration
- European Design No. 015136229-0002 / 015136229-0001
- Cover Mechanism
- Hinged flap with integrated sealing gasket
- Body Material
- UV-resistant high-performance polymer & metal/Fenix front plate
- Compatible Handsets
- Ekinex Sockets, 71 Pushbutton, 20venti, Proxima, ERA
- Mounting Compatibility
- Standard flush boxes (with dedicated IP adapter frame)
- International Standards
- IEC 60529, IEC 60364, SI/IS 60034
Compatible Accessories & Adapter Frames
- Metal Front Plate
- EK-DQW-GAR | EK-DQW-GAE | EK-DQW-GBQ | EK-DQW-GBR | EK-DQW-GBS | EK-DQW-GBU | EK-DQW-GBC
- Fenix NTM® Front Plate
- EK-DWE-FBM | EK-DWE-FBL | EK-DWE-FCO | EK-DWE-FGE | EK-DWE-FGL | EK-DWE-FGB | EK-DWE-FCC | EK-DWE-FVC | EK-DWE-FNI
- Power Socket Adapter Frame
- EK-K55-B
- Control Panel Adapter Frame
- EK-K60-B
