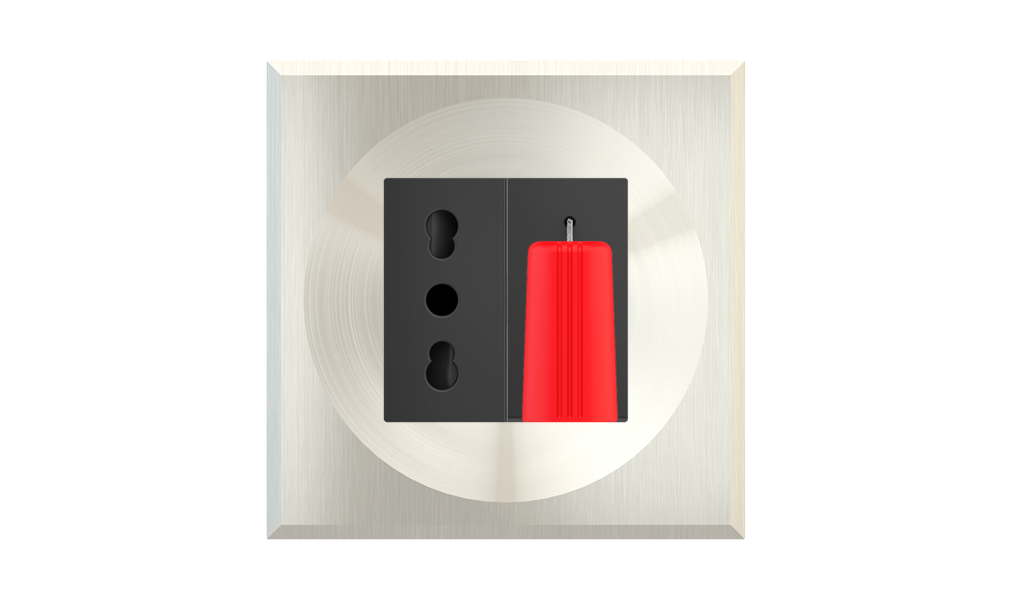

Wiring device modules for square plate (45x45 mm window)
The Ekinex® wiring device modules for square plates with 45x45 mm window offer an exceptional combination of functionality and refined design, discreetly adapting to any architectural environment. These modules are engineered for the connection of domestic and commercial electrical appliances with AC voltage up to 250 V~ and are equipped with shutter contact protection. They mount into standard round or square flush-mounting wall boxes, offering screw or spring terminals for cables up to 2.5 mm² cross-section.
Compatible Modules and Wiring Devices
International standard sockets, buzzers, circuit breakers and blank covers compatible with 45x45 mm ERA square plates:
.png)
Italian Power Socket - 10A

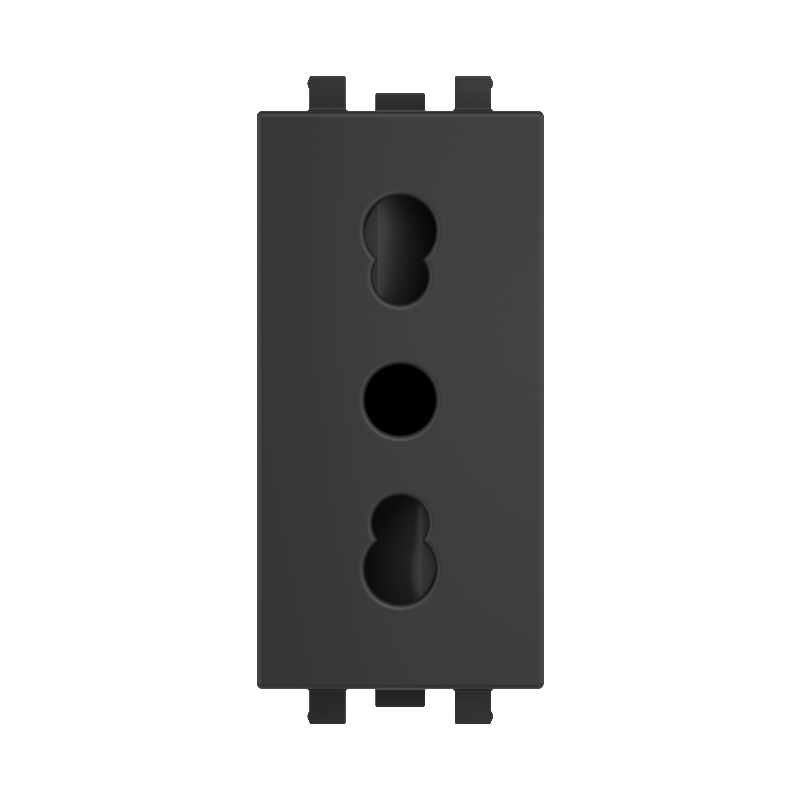

Bipasso Socket

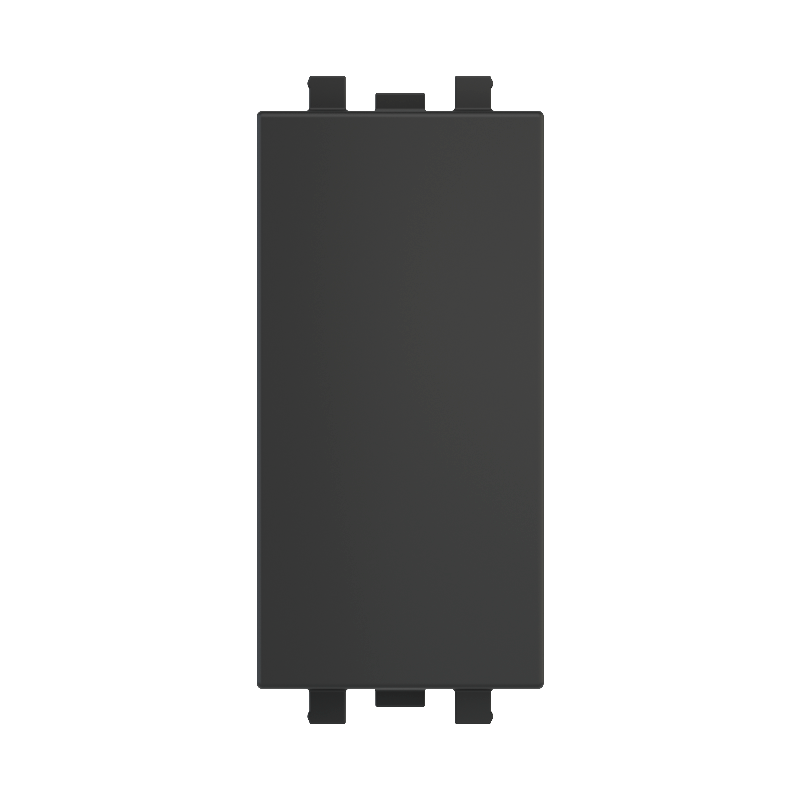

Hole Cover (2 pcs)
.png)
Buzzer 230V
Ringtone 230V

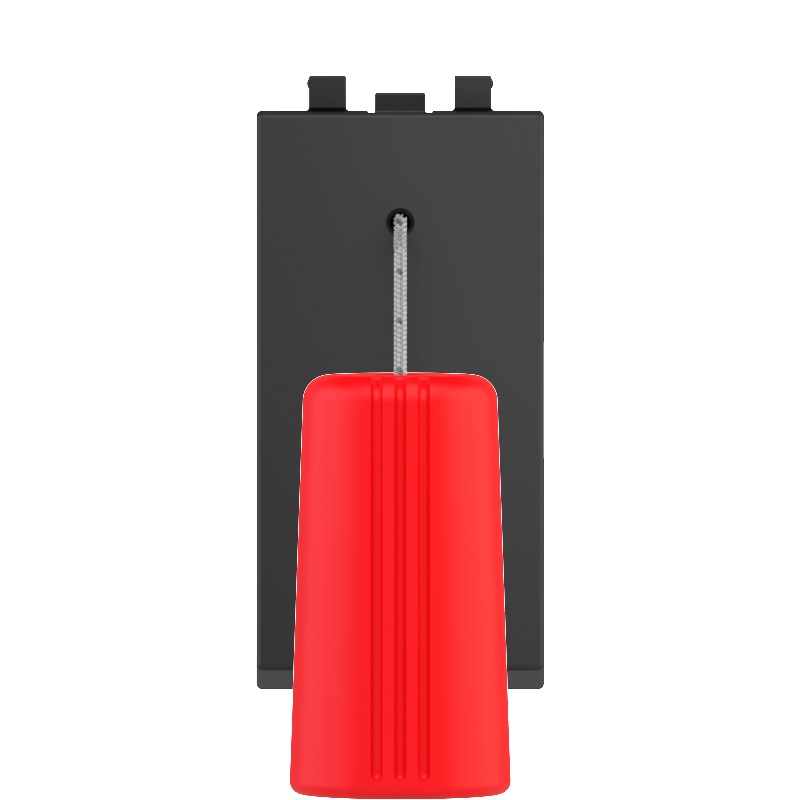

Button Puller

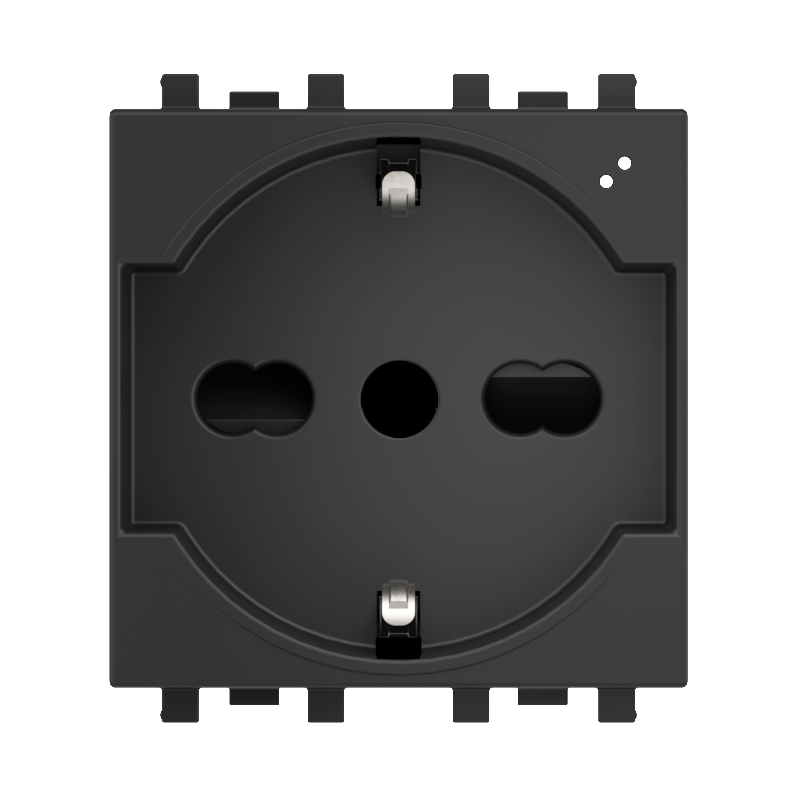

UNEL Socket

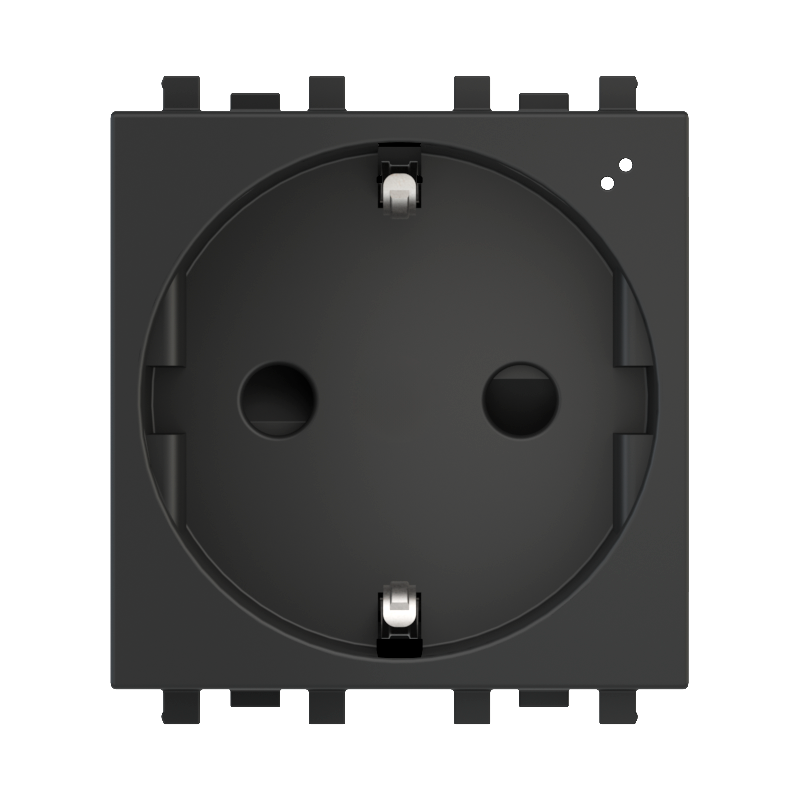

Schuko Socket (Screw Clamp)

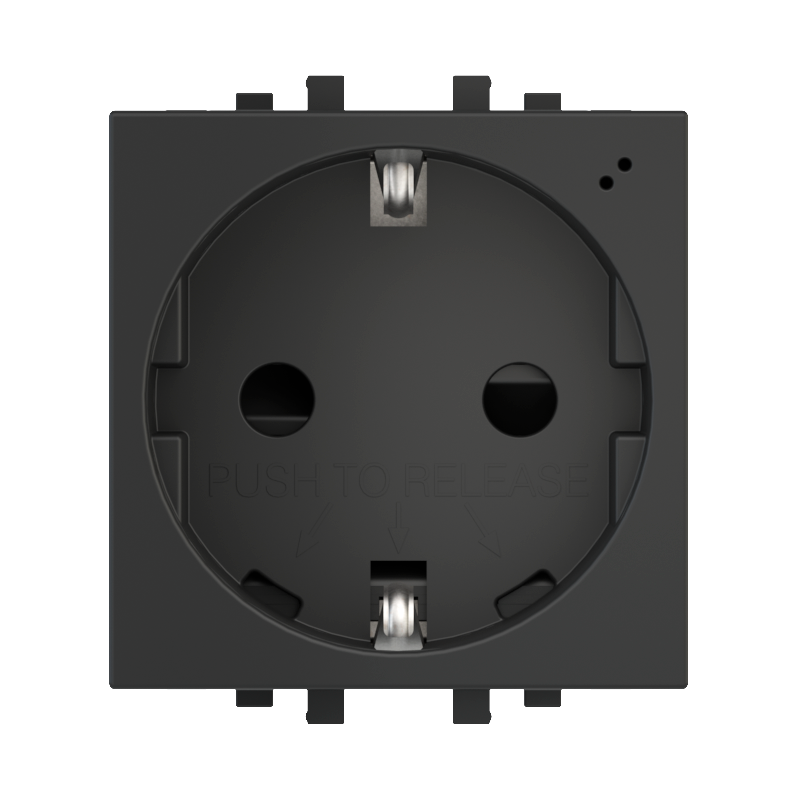

Schuko Spring Clamp Socket

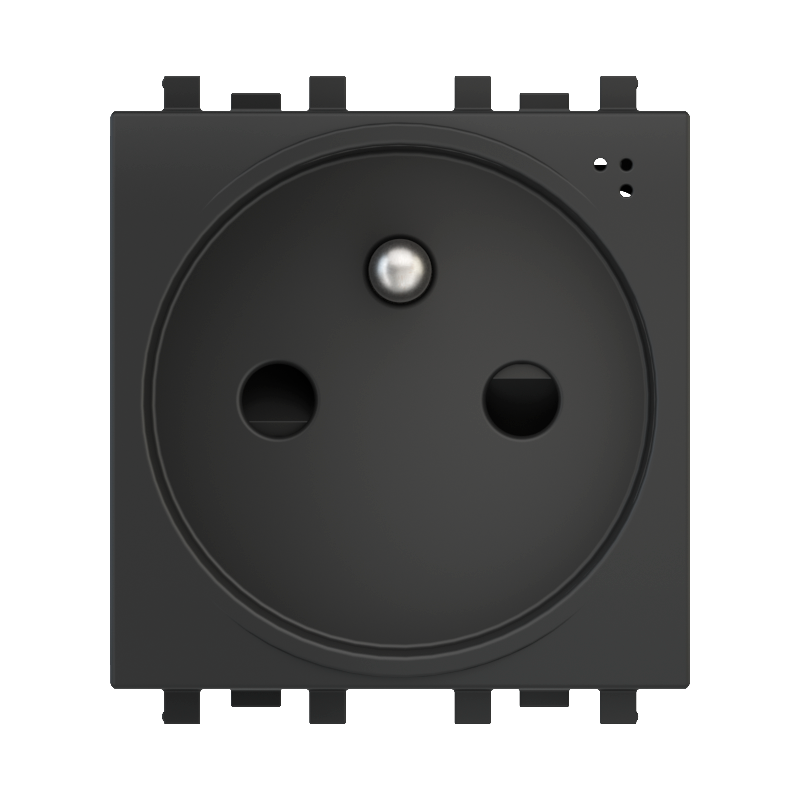

French Socket - Type E (Screw Clamp)

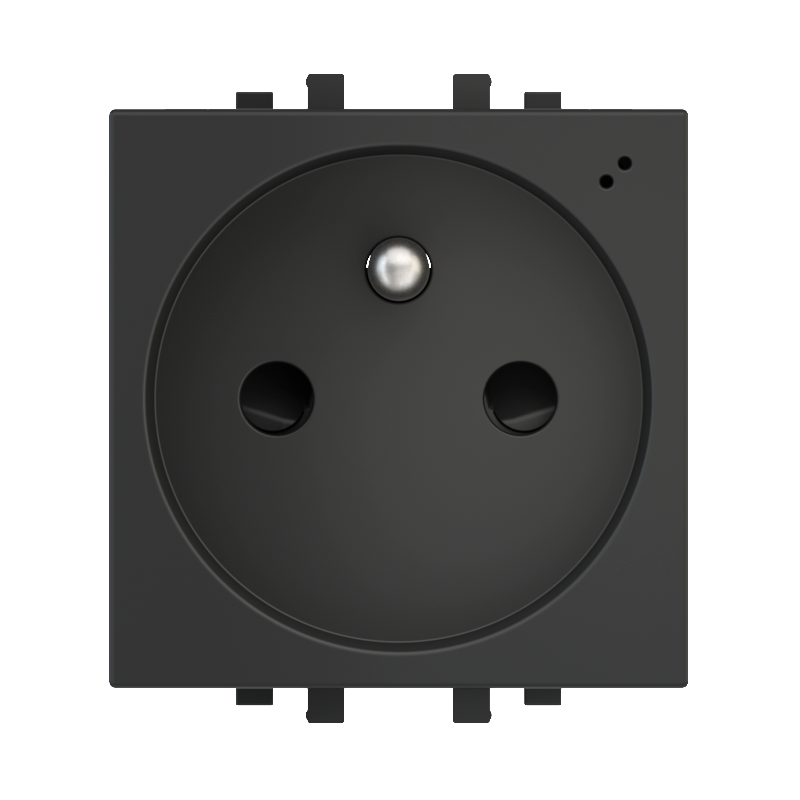

French Spring Clamp Socket - Type E

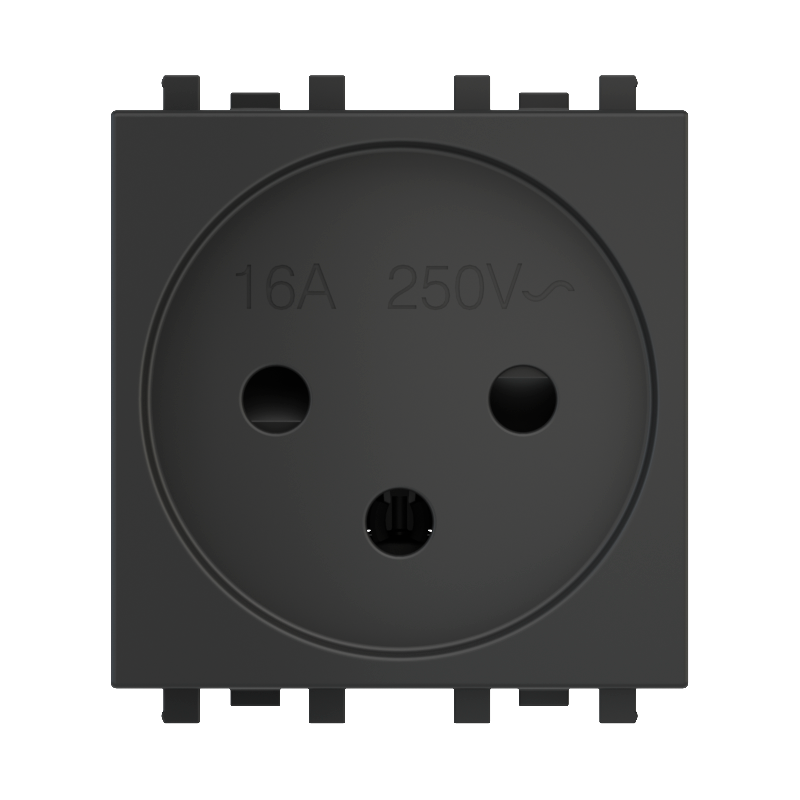

Israeli Socket

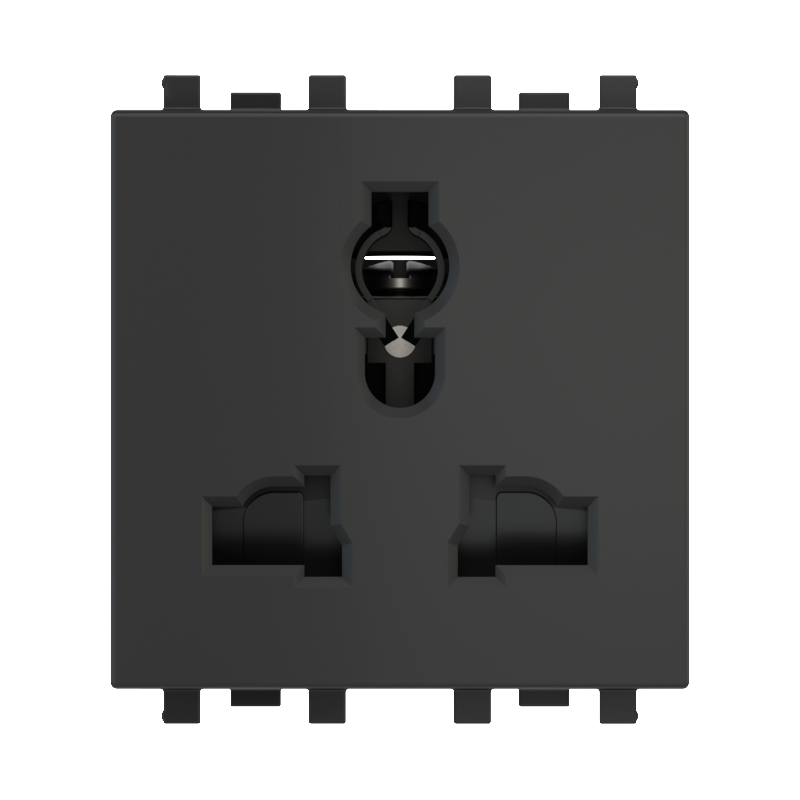

Universal Socket

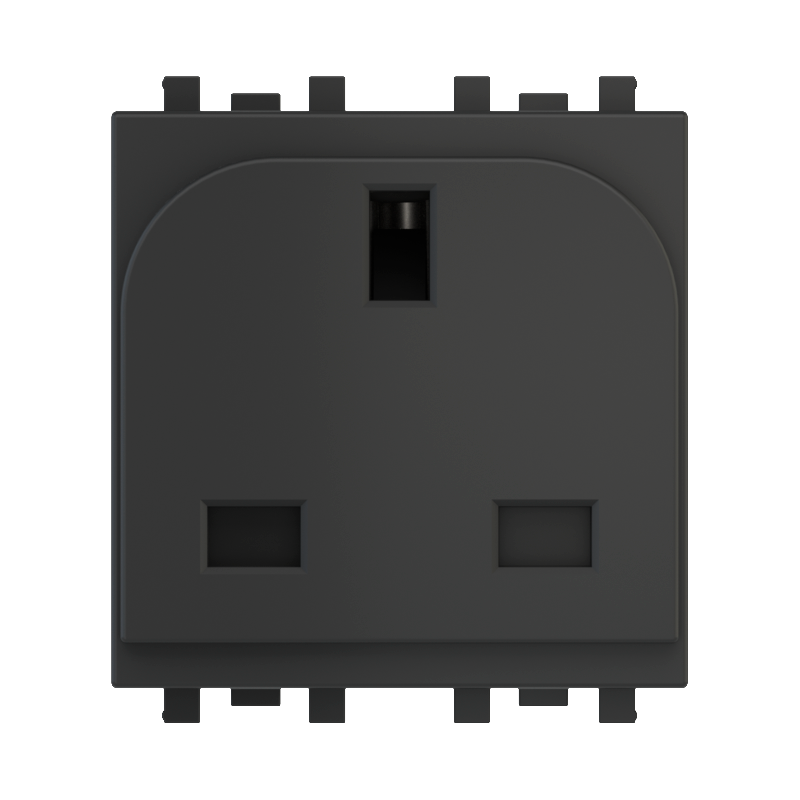

UK Socket

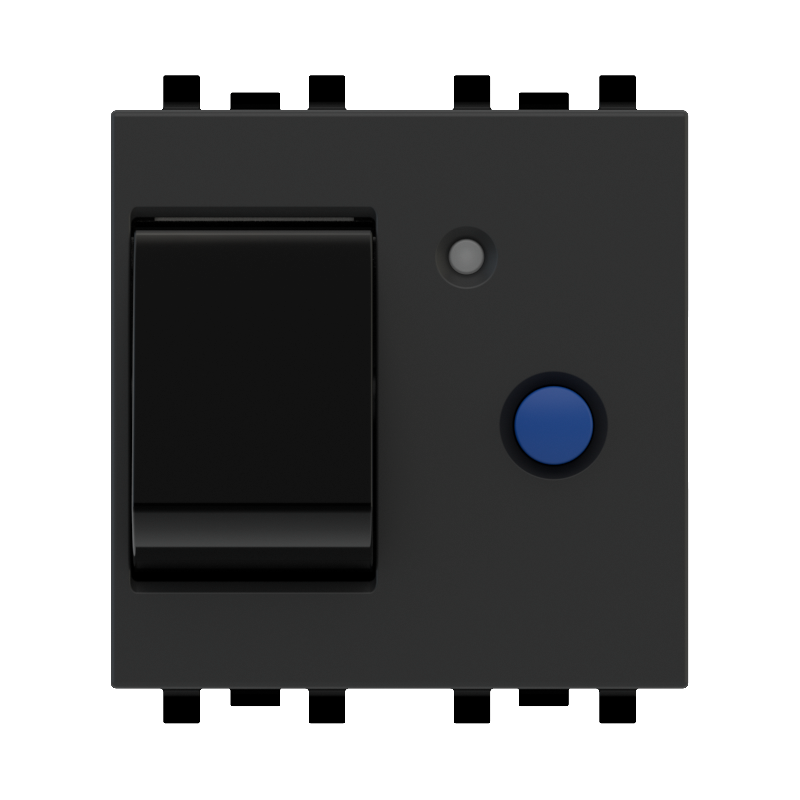

Differential Thermal Magnetic Circuit Breaker
Functions and Features
- Safe connection of domestic and commercial electrical loads up to 250 V~
- Contact protection via integrated safety shutter
- Mounting on standard round or square flush-mounting wall box
- Screw or spring terminals for cable cross-sections up to 2.5 mm²
- Seamless zero-gap integration with ERA series metal magnetic plates
Technical Data
| Rated Voltage | 250 V~ (50/60 Hz) |
| Rated Current | 10A / 16A (depending on the module type) |
| Cable Cross-Section | Up to 2.5 mm² single or multi-core |
| Window Dimension | 45 x 45 mm standard square cutout |
| Mounting Box | Round or square flush-mounting box (60 mm fixing centers) |
| Protection Degree | IP20 (according to EN 60529) |
| Commissioning | Not necessary (Plug & play mechanical hardware) |
