Üretim Sonu / Phase Out

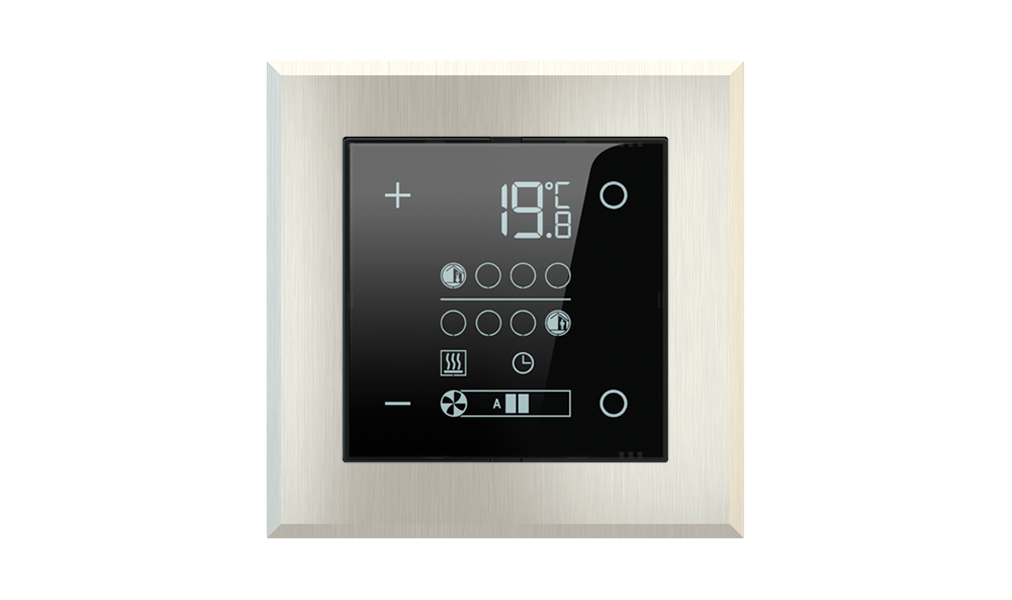

Room thermostat E73
EK-E73-TP
The Ekinex® room thermostat E73 regulates independently the temperature of a room or zone. In combination with KNX actuators, it controls terminal units such as radiators, fan-coils, or radiant panels.
Finish & MaterialMetal: Steel Brushed - SSB
Made in Italy
4 Metal Finishes
KNX Standart
Architectural Climate Integration
Featuring proven reliability and the classic Ekinex button layout, the E73 coordinates with ERA metal finishes to ensure architectural harmony. Its backlit LCD displays room temperature, setpoint, and fan status clearly.
Functions & Technical Capabilities
Backlit LCD display
Integrated temperature sensor
Independent heating and cooling control algorithms
Manual or automatic fan speed selection
User pushbuttons for rapid setpoint adjustment
Directly powered via KNX bus line
Technical Specifications
- Power Supply
- 30 Vdc SELV via KNX bus line
- Current Consumption
- < 13 mA
- Display
- Blue backlit LCD screen
- Operating Temperature
- -5 °C to +45 °C
- Mounting
- Standard round or square flush box
- Protection Degree
- IP20
Compatible Accessories & Frame Options
- ERA Series Frame with Closed Frame
- EK-FOD-SSB | EK-FOD-SBV | EK-FOD-GWB | EK-FOD-GBD
Technical Documentation
Official datasheets, application manuals, installation guides and certificates.
Technical Datasheet (STEKE73TP_EN)
STEKE73TP_EN | v.2.0 | 791 KB
Mounting Instructions (FISPE73TPRIEXX1)
FISPE73TPRIEXX1 | v.1 | 915 KB
ETS Application Manual (MAEKE73TP_EN)
MAEKE73TP_EN | v.4.0 | 3.1 MB
Easy Application Manual (MAEKE73TPEASY)
MAEKE73TPEASY | v.1.1 | 6.0 MB
CE Declaration of Conformity (CEEKE73TP)
CEEKE73TP | v.1 | 860 KB
UKCA Declaration of Conformity (UKCADCEKE73TP)
UKCADCEKE73TP | v.1 | 427 KB
Official KNX Certificate (EK-E73-TP)
KNX-EK-E73-TP | v.1 | 793 KB
Ekinex Shareholding & Quality Certificate
EK-SHARE | 2025 | 1.0 MB
